AFCO, Industries ARR100SCRBK

Series 100 4-Inch Site Cut Bracket Kit

Be the first to review this item | Ask a Question

Item No.: ARR100SCRBK

Quick Overview

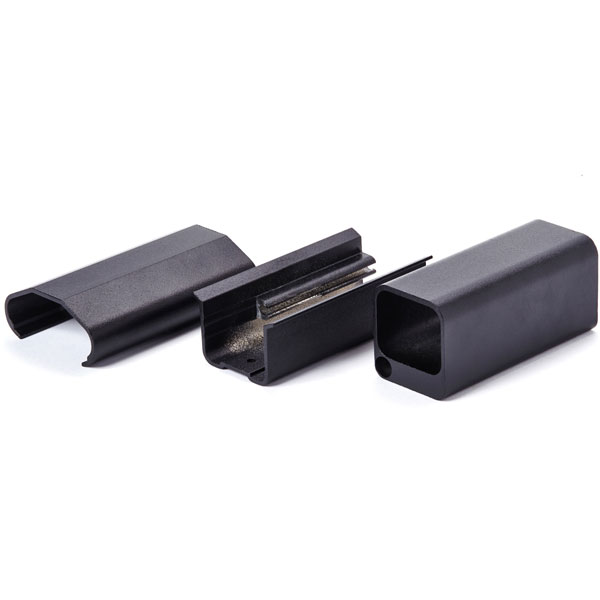

This Bracket Set contains two Top Rail and two Bottom Rail Post-to-Post style Mounting Brackets for the Series 100 Level Rail. These brackets are elongated to 4" long so that you can cut custom angled on the back prior to mounting. The Top Rail Mounting Bracket is a two-part bracket with a Lower, Saddle portion and a Top Cover, which makes rail installation simple and easy. The Bottom Rail Brackets feature angled screw bosses which make for easy access when installing. Also included are self-tapping stainless steel screws to mount the brackets to any of the Aluminum Afco-Rail Post products. NOTE: If cut at an angle larger than 32 degree, the 4" Site Cut Brackets must be mounted on a 4" Post or larger.
  • Contains Two 4" Long Top Rail and Two 4" Long Bottom Rail Post-to-Post Mounting Brackets
  • The elongated brackets allow you to cut custom mounting angles into the brackets
  • Includes Self-Tapping Stainless Steel Screws for Mounting to Aluminum Afco-Rail Post Products
  • For Use with Series 100 Level Rail being mounted onto the post at a 22-1/2 degree angle
  • 4" Posts are required for use with brackets cut at an angle higher than 32 degrees
  • AAMA 2604 Powder Coat Paint Finish
